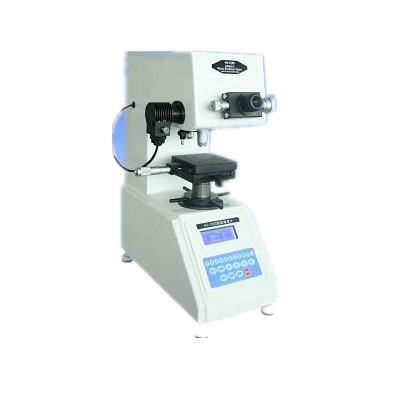

- 产品名称：显微硬度计 HV-1000
- 结构组成：
- 适用范围：
- 温馨提示：
- 1.显微硬度计 HV-1000可能含有禁忌内容或者注意事项，具体详见说明书；
- 2.购买显微硬度计 HV-1000，消费者应仔细阅读产品说明书或者在医务人员的指导下购买和使用。
性能和特点:
HV-1000型显微硬度计是基本型的显微硬度计,该机采用LCD显示屏,通过操作面板可对硬度标尺HV或HK各档试验力保荷时间进行选择,光源亮度可作无级调节。操作时,可将目镜测得的D1,D2值直接输入后,硬度值即在LCD显示屏上直接显示。
适用范围热处理、碳化、淬火硬化层,表面覆层,钢,有色金属和微小及薄形零件等。
HV-1000 Micro Vickers Hardness Tester adopts LCD screen to display. By mean of control keys, HV or HK hardness scales, testing force and duration time can be selected and brightness of light source can be adjusted without steps. With measuring microscope, it may test out the length values of diagonals D1 and D2, then press the keys to input the length values, and the hardness values will be displayed on the LCD screen. Operation is easy.
Usage Range:
Heat treated layer, carbonized layer, hardened hard layers, superficial coating, steels, non-ferrous metal, micro and thin shaped components.
技术参数(Technical Specifications)
试验力 (Testing Force) | 10gf (0.098N)、25gf (0.245N)、50gf (0.49N)、100gf (0.98N )、 200gf (1.96N)、300gf (2.94N)、500gf (4.9N)、1000gf (9.8N) |
*小测量单位 (Min Measuring Unit) | 0.5μm |
总放大倍数 Magnification of Microscope | 100X(观察, For Observation )400X(测量, For Measurement) |
加荷方式(Loading Method) | 自动(加荷、保荷、卸荷), Automatically (load, keep, unload) |
仪器尺寸(Overall Dimension) | 405×290×480mm (长×宽×高, L X W X H) |
仪器重量( Net Weight ) | 25kg |
试件*大高度 (Max Height of Specimen) | 65mm |
电源(Power Supply) | AC220V±5%,50~60Hz |
执行标准(Carried Standard) | GB/T4340.2国家标准(GB/T4340.2 Chinese Standard), JJG151检定规程 ( JJG151 Inspection Rule ) |
X-Y试台 X-Y Testing Table | 尺寸(Dimension):100×100 mm *大移动(Max. Travel Range): 25×25mm |
标准配件附件 Standard Accessories | 物镜40x、10x,微氏压头,测量目镜10x,标准硬度块(2),薄形试台、圆柱体试台、平口试台,水平仪,电源线,辅助工具等 Objectives 40x and 10x, Vickers Indenter, Microscope 10x, Standard Hardness Brocks: 2 pcs, Thin Specimen Testing Table, Column Testing Table, Forcipate Testing Table, Lever, Power Cable, Assistant Tools, etc |
